Endless Pools Fastlane Counter Current
Easy Installation & Maintenance
Roll the Fastlane across your pool deck and drop it into the water. Simple hydraulics means no electricity poolside.
Free form or rectangular; gunite, vinyl or fibreglass; new construction or retrofit – the Fastlane puts the swim into any swimming pool.
Swim Without Turning
Pool too short for a good swim- A Fastlane lets you swim for as long as you like without turning. Adjust the Fastlane to your pace and enjoy swimming in a smooth, even, river-like current.
Endless Pools Fastlane Swimming Pool Counter Current Unit
If your pool is too short for a good swim the Endless Pools Fastlane Swimming Pool Counter Current Unit provides a perfect solution and lets you swim for as long as you like without turning. The Fastlane counter current unit can be adjusted easily to your pace by using the supplied remote control so you can enjoy swimming in a smooth, even current like swimming in a river.
There are two types of Endless Pools Fastlane Swimming Pool Counter Current Unit, a ‘Deck Mount’ unit for retrofitting in existing pools and an ‘In Wall’ version for new build or refurbishments.
Easy installation and maintenance as the Fastlane counter current unit can be rolled across the pool deck and dropped into the water. Simple hydraulics mean no electrical connections poolside.
Swimmers love the quality of the adjustable speed of the swim current – children love it because it’s just plain fun. A Fastlane transforms your pool into a water park.
Endless Pools Fastlane Counter Current Unit Features
- Can be fitted to almost any pool.
- Minimum water depth required is 35″.
- 16″ propeller.
- Supplied with 1 remote control fob.
- Adjustable speed setting suitable for all swimming levels.
- Ideal exercise, therapy and fun.
- 5HP power unit can be placed up to 200’/60 metres away.
- Endless Pools Fastlane can be fitted to virtually any pool either new build or retrofit with a minimum 35″ water depth required.
- A 5HP pump with a 16″ diameter propeller gives a maximum 66 second 100 yard pace.
- 2 Year Warranty
Endless Pools Fastlane
Section 1 GENERAL OVERVIEW OF AN ENDLESS POOL FASTLANE
The Fastlane® swimming machine by Endless Pools, Inc. is a hydraulically-powered system that creates a
smooth, adjustable-speed swim current in a conventional pool. The Fastlane has been fabricated with the
finest, most durable materials and designed to meet the most stringent safety standards including VGB
2008. The swim current produced is wider than your body and deeper than your stroke — far superior to
currents created by one or more jets. Two 3/8″ hydraulic hoses carrying a non-food grade, biodegradable
vegetable oil run between the hydraulic Power Unit and the Fastlane Swim Unit, thus eliminating the need
for electricity poolside. When pumped at high pressure, this hydraulic fluid creates a swim current by turning the shaft of a submerged stainless steel hydraulic motor in the Fastlane Swim Unit, which in turn rotates
a 16″ diameter propeller. The Power Unit is activated using a 3-button radio frequency remote control that
can turn the unit on and off and adjust the speed. It is best if the Power Unit is within 25′ of the Swim Unit
to minimize pressure loss. An optional 6″ LED swim pace display is available to monitor your speed. Also,
customers often place our swim mirror on the bottom of the pool to observe their swim stroke.
Note: all of the 316L stainless steel screws provided for the assembly of this unit should be tightened to
the recommended 25 in-lbs of torque.
= Wall Mount Fastlane = Deck Mount Fastlane

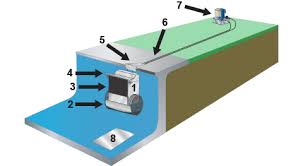

The Fastlane can be mounted one of two ways:
The Wall Mount Fastlane fastens to the wall of the pool using the bracket provided. Two 1″ polyethylene
pipes (or 1 1/2″ PVC pipe) which serve as conduits for the hydraulic hoses run under the pool deck to a remotely located, 5-horsepower, hydraulic Power Unit, as shown in Figure 1.1.
The Fastlane produces a smooth even swim current in any pool. Adjustable from zero up to a 1:10 hundred yard pace
(1:16/100 meters) the Fastlane allows you to swim in place for as long as you like. Converts any small pool into a perfect
place for fitness swimming.
HOW THE FASTLANE WORKS
The system has two parts: a remotely located Hydraulic
Power Unit that powers the swim current and the
Swim Unit that mounts poolside. These components are
connected by two hydraulic hoses designed to keep
electricity away from the water.
The poolside Swim Unit includes a special sealed stainless
steel hydraulic motor that turns our custom-designed
16” propeller. An innovative channeling system
straightens and smoothes the swim current.
The motor is powered by hydraulic fluid
that is carried through 1/2” diameter
hoses from the Power Unit to
the Swim Unit. Water enters
the bottom of the Fastlane
from all directions through
a perforated stainless steel
(type 316L) intake grill.
The rugged 5 horsepower
Power Unit is typically
located with your other pool
equipment, keeping any electricity
away from the pool. The remote Hydraulic
Power Unit contains 5 gallons of biodegradable
vegetable-based hydraulic fluid that is pumped to the Swim Unit.
By varying the flow of oil you change the speed of the propeller
and thus the swim current.
USING YOUR FASTLANE
Learning to use your Fastlane takes
only seconds. Turn the Fastlane on
by pressing the On/Off button on your
remote control. Position yourself on the
wall opposite the Swim Unit so that you
can swim into the current. While it
is easy to look up and center yourself
on the current, we recommend our
optional floor mirror. Placed on
your pool bottom, the mirror will
help center you in the current as
well as provide valuable feedback on
When changing the speed with the Slower and
Faster buttons on your remote control, wait a few
seconds for the current to adjust. Set the water speed at
a comfortable level for your needs. Remember, since you
never stop and turn at a wall, you will tire 20% to 30% faster
than when swimming laps.
To stop swimming, simply swim out of the current. Press the On/
Off button on your remote control to turn off the Power Unit.
Restart whenever you want by pressing the On/Off button. The
current will return to the last speed programmed into the remote.
In addition, the Fastlane has a built-in safety timer that shuts the
current off after 30 minutes.
A Fastlane is not a toy. It is a serious swimming machine intended for fitness swimming.
It should never be used by children without proper adult supervision.
