Balboa Sensor Assembly Pre M7


2 in stock

SKU: SNBA100 Categories: , Tags: ,

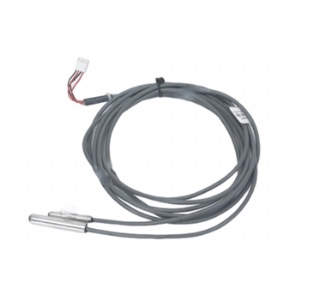

Balboa Sensor Assembly Pre M7

Type of product:Sensor assembly / harness
Box Quantity:10
Connection:The 2 probes slide in to their holders and the flat plastic plug plugs straight on to the PCB.
Size specification:Temperature probe diameter: 9mm
Hi limit probe diameter: 5mm
Temp cable length: 2438mm or 96 inches
Hi limit cable length: 787mm or 31 inches
Commonly used with:Used with systems such as M3TUV, Lite Leader and 2000 Value series including 2005LE with pressure switch.
Additional notes:The big sensor is reads the temperature and goes into the spa and the small one is the high limit which goes into the back of the heater.
